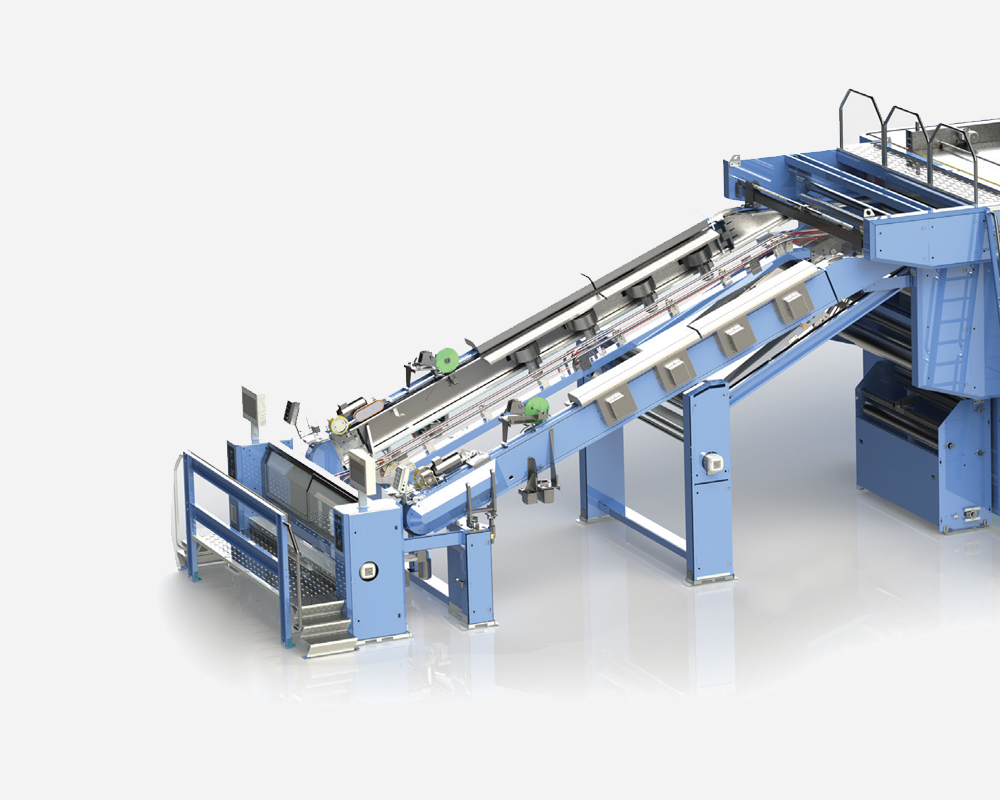

PIN CHAIN TENTER FRAME (DRYERS)

EF-EGD

The unit is mainly preferred where the open width fabrics are processing on drying machines for width adjustment, gum application and edge drying before drying chambers.

  • Inlet Section and Operator Platform

  • Steel construction, painted and reinforced main frame.

  • Main traction roller, AC inverter controlled, Ø 220 diameter.

  • 11 kW capacity, 1400 rpm motor-gearbox driven system.

  • 2 pcs spiral expander rollers uncurl fabric edges before pinning on chain links.

  • Manuel skew correction roller, 500 mm stroke.

  • Functional control panel and PLC system.

  • Driven fabric conveyor unit, synchronized with machine speed or can be adjusted separately.

  • Chain Inlet Groups

  • Pneumatic controlled, rubber coated, left-right pinning wheels and brushes.

  • Fabric edge spreading unit EF-MED and infrared edge control sensor EF-ECU.

  • Actuators EF-ECU/C, inverter controlled chain rail position adjustment.

  • Pneumatic chain tension adjustment group.

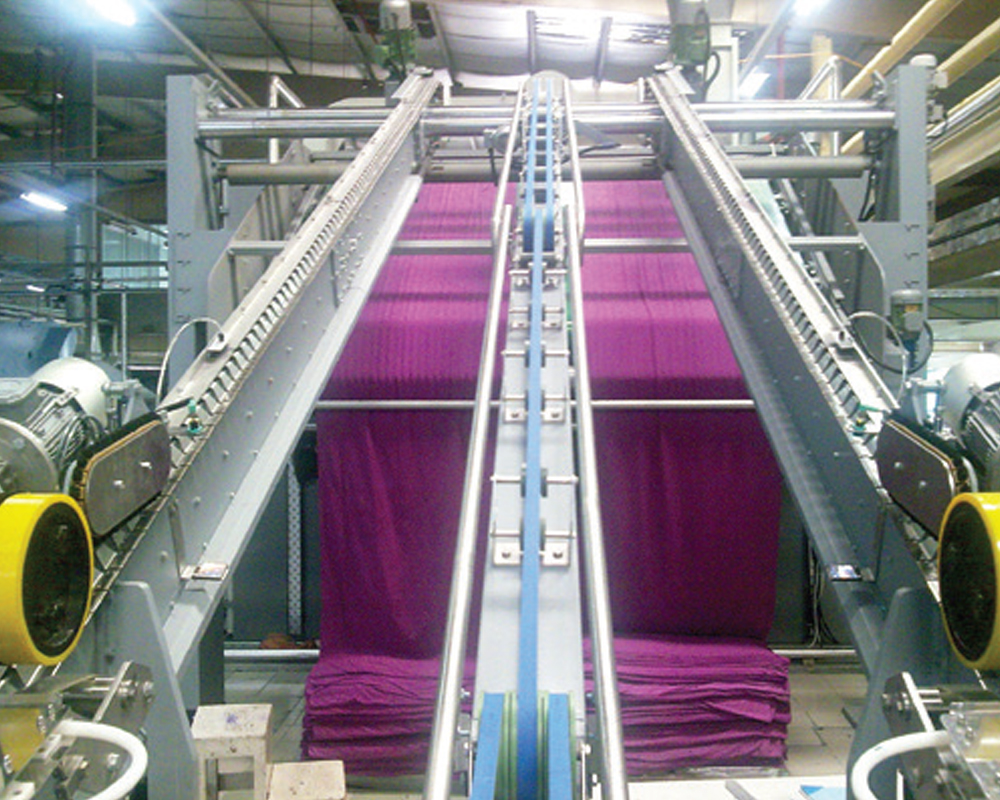

  • Chain Rails

  • 5+1 long chain rails, vertical rail arrangement.

  • Chain tension control sensors.

  • Stainless steel chain rails and chain links.

  • Independent chain rail motor-gearbox system, encoder and inverter controlled.
