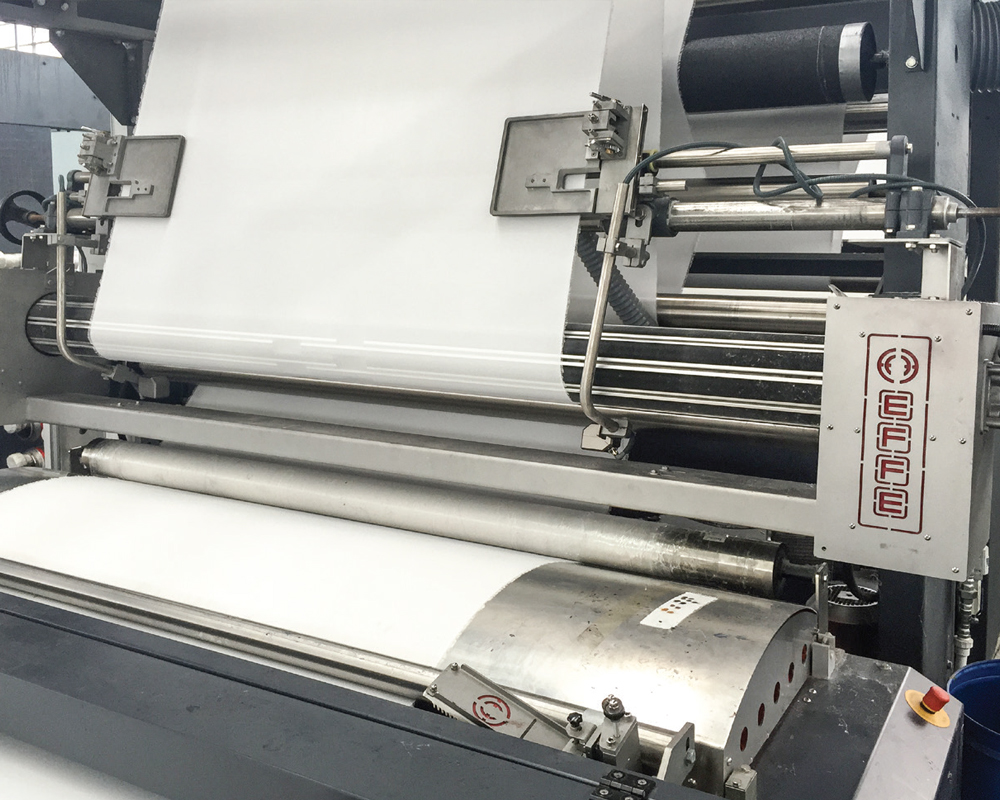

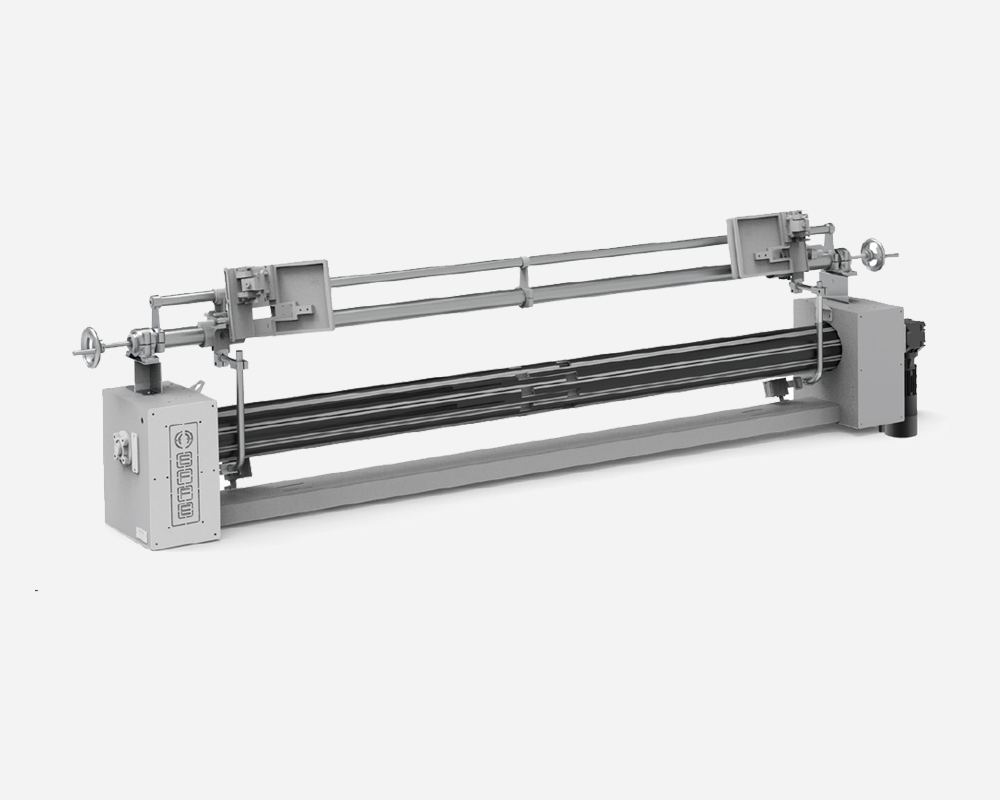

FABRIC CENTERING AND SPREADING UNIT

EF-FCU/B

Mainly unit is designed and manufactured to transfer the fabric to printing machine’s blanket tensionless, centered and both side edges uncurled.

It is designed to work compatible with sensors and DC motor unit that is required to referral fabric from desired point to the printing blanket. In applications that will be worked with knitted fabrics, pneumatic type of edge decurler unit (EF-MED/F) is highly recommended in order to get maximum fabric edge uncurl success prior to the fabric centering and guiding unit. Driven roller application can be used as required prior to centering unit.

  • Stainless steel main frame, connection frames.

  • DC motor-gearbox controlled lath movement system from one side or double side.

  • Working width range 1800-3400 mm.

  • 18 pieces of aluminium centering lathes, 9 right – 9 left side.

  • Moher coated slats for dry fabrics.

  • Skew distance of lathes 40 mm max.

  • The unit can be used with or without EF-ECU type edge control sensor.

  • Control panel can be used on left side or right side.

  • 1.1 kW capacity AC motor-gearbox driven system.

  • High sensitive centering feature as 1-3 mm.
