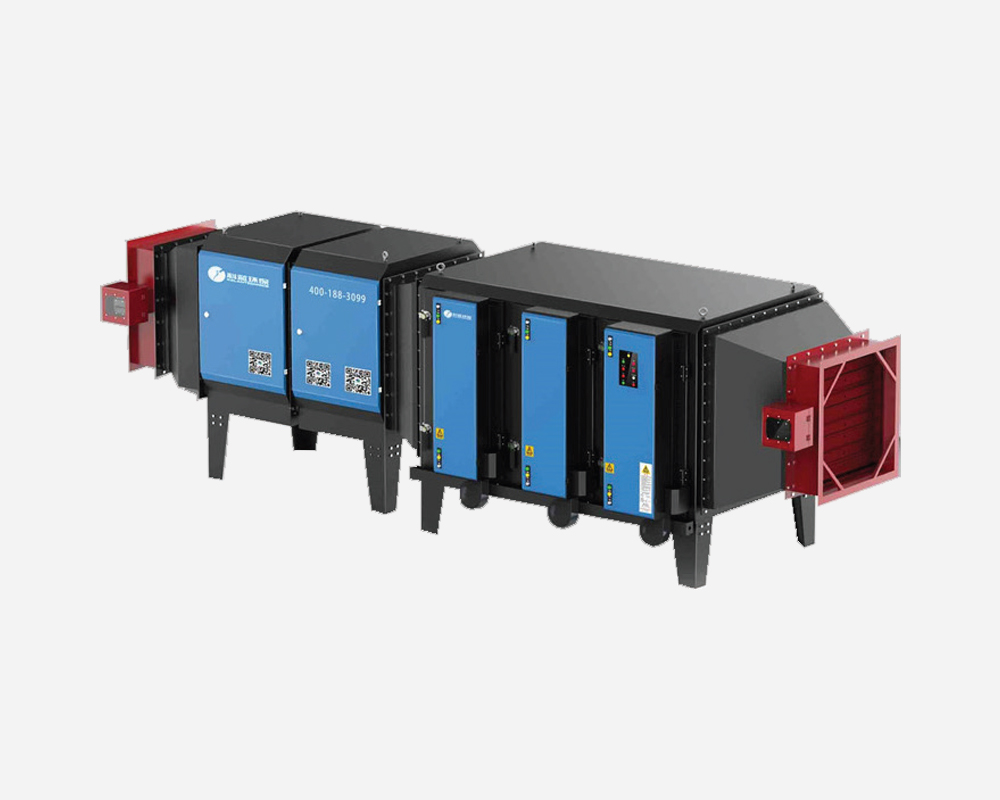

EXHAUST AIR CLEANING SYSTEM FOR STENTER MACHINES

EF-ESF

By the exhaust fan at the exit of the unit,smoke and dirty air come to the rough filtering unit, then pass through cooling unit, then enter to multiple passed ESP filter. In this area particles that are smaller than micron got electrified and captured.

At the end of the process clean air flows
through the atmosphere. Particles that are bigger then drops, fall from filter by gravity and collected in ESP channels. It can be used as fuel mix afterwards or can be collected by licensed companies.

  • %95-97 Effective working performance according to process circumstances and heat setting temperatures.

  • Long lasting use possibility thanks to the stainless filter cells and optional stainless heat exchangers

  • Different electrostatic filter types with automatic or manual cleaning features.

  • Hot water recycling for factory by heat exchanger unit.

  • DOP oil recycling.

  • Local technician support on after sales, installation and spare parts.

  • Digitized Circuitry and Power Pack.

  • RTD(PT-100) Fire Sensor.

  • Pneumatically Operated Fire Dampers.

  • User-Friendly HMI Panel.

  • High Frequency High Voltage Transformer.
