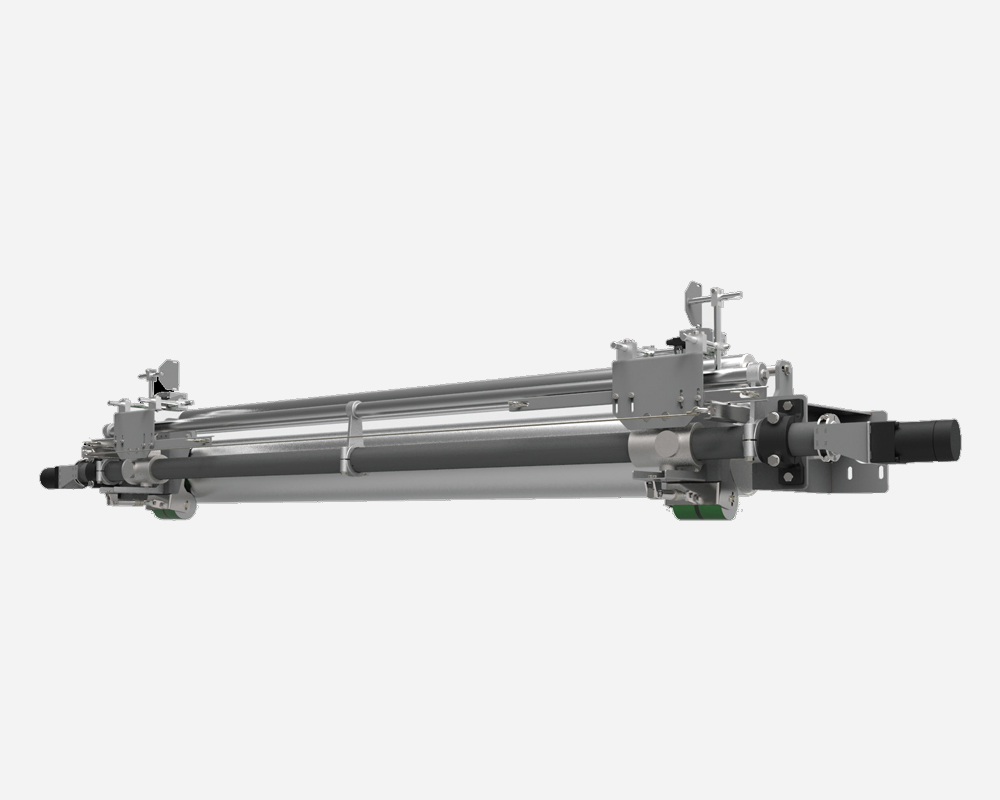

Tufted edges of woven fabrics continue to burn at the exit of singeing machines. Edge extinguisher unit is implemented to transfer fabric with extinguishing the fabric edges.

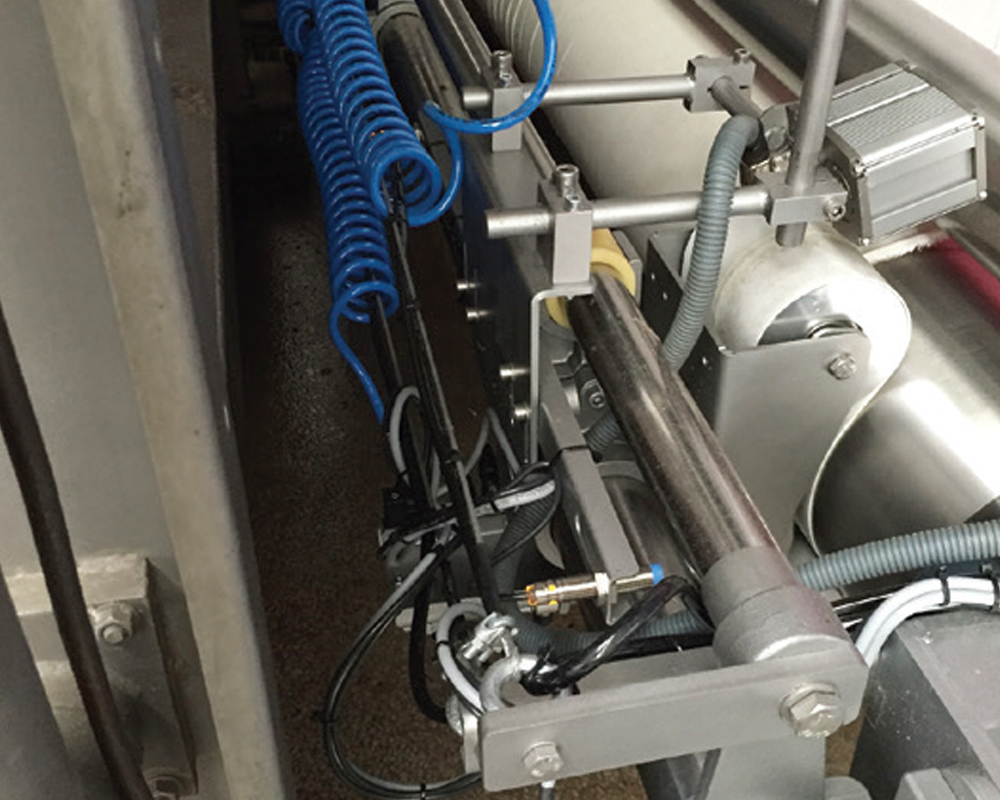

Fabric exits from singeing machine with tufted edges and passes through double sided cooling rollers within this unit. While passing, edge control sensor, pneumatic system, conveyor belted mechanism pressures the flamed fabric edges on cooling roller. Air contact of the flamed tufts is being cut off and thus flame is being extinguished
